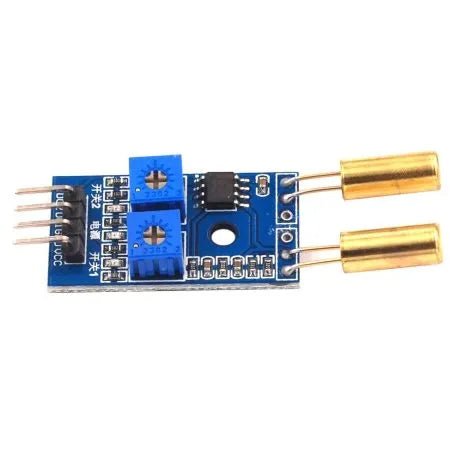

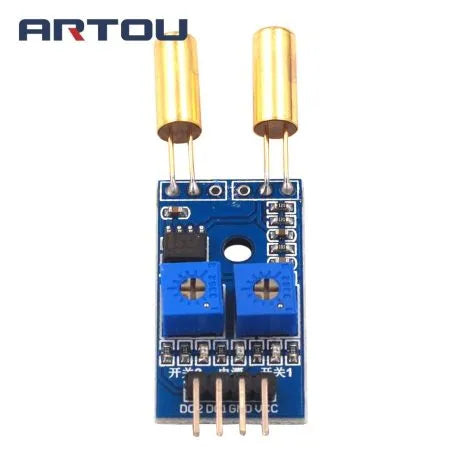

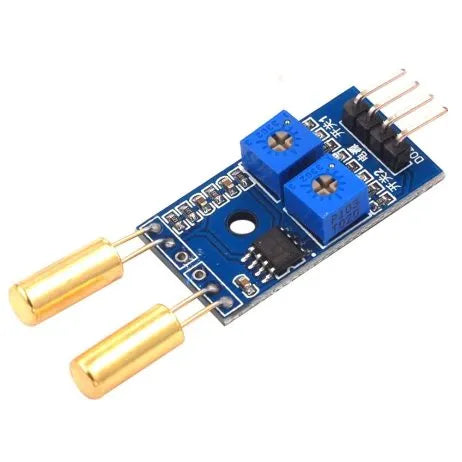

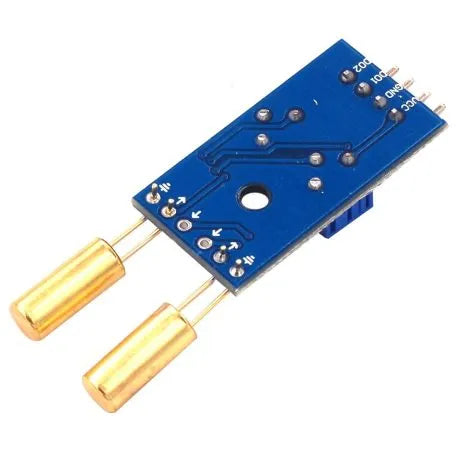

2 Channel Tilt Sensor Module for Accurate Tilt Detection

2 Channel Tilt Sensor Module is an essential device for detecting the tilt of an object. This tilt sensor module features a simple usage design, providing a digital output for easy tilt detection by reading the output. Equipped with SW-460D or SW-520D tilt sensors, this 2 channel tilt sensor module functions as a ball rolling type, making it highly sensitive for detecting angle changes. The tilt meter is designed to detect changes in orientation or inclination, making it suitable for systems that require feedback on angular position changes. The module is compact and lightweight, ensuring reliable performance in various environmental conditions. Experience the benefits of using a tilt sensor Arduino compatible system that combines efficiency and versatility with ease.

Key Features - Tilt Sensor

• Operating voltage: 3.3V-12V
• Wide voltage LM393 comparator
• High sensitivity tilt switch with the capability to function as a mercury tilt switch
• Maximum output current: 15mA
• Ball rolling type sensor providing accurate inclinometer sensor readings
• Dual tilt detection capability making it an ideal sensor inclinometer option
• Easy integration with microcontrollers and development boards like sensor tilt Arduino systems

Applications

This tilt sensor module is versatile and can be used in a variety of applications such as robotics for angle detection, including the use of an incline sensor for precise measurements. In automotive systems, it monitors inclination effectively, and in consumer electronics, it adjusts device orientation accurately using an angle sensor Arduino compatible setup. It can also function as a tilt switch sensor for vibration detection, enhancing its utility in security systems and machinery monitoring. Additionally, this module supports industrial automation for monitoring and reporting structural tilts in systems.

Technical Specifications

How to Use

The module can be easily interfaced with any microcontroller with a digital input including PIC and Arduino series. 1. Connect the module's power pin to the power supply (3.3V or 5V) and the ground pin to your system's ground. 2. Attach the output pins to the desired input pins on a microcontroller or processor, making sure it adapts to tilt sensor Arduino configurations. 3. Program the microcontroller to monitor the digital output, using principles of tilt sensor working for enhanced accuracy. A change in output typically indicates a change in inclination. 4. Use the output data to execute functions like activating alarms, controlling stabilization mechanisms, or triggering indicators in response to detected tilt. Ensure proper orientation to optimize the tilt detection capabilities.

Package Includes

1 x 2 Channel Tilt Sensor Module
