Description

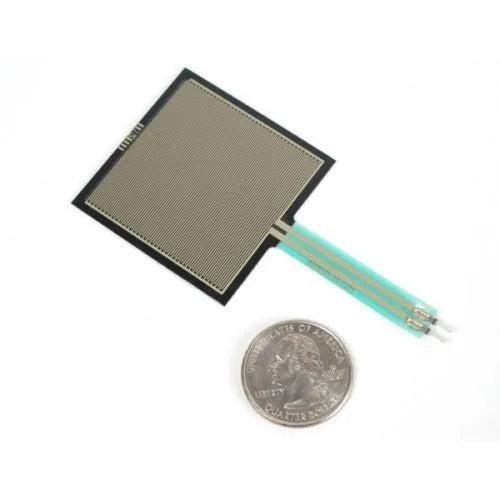

The Force Sensor Resistor Square 39.1mm is a highly versatile and reliable sensor used in various applications where force measurement is essential. This force sensitive resistor features a square 1.75 x 1.5" sensing area and provides varied resistance based on applied force. It is a highly reliable sensor solution for those looking for quick implementation in projects.
Key Features - Force Sensitive Resistor
- Easily customizable to a wide range of sizes
- Cost-effective solution
- Ultra-thin with 0.45 mm thickness
- Robust up to 10 million actuations
- Simple integration into electronic projects
Applications
This sensor is perfect for pressure sensor systems in testing and measurement equipment. It is ideally suited for weight sensor applications in consumer electronics and multimeters. It also offers great flexibility for use in OEM development kits and embedded electronics systems.

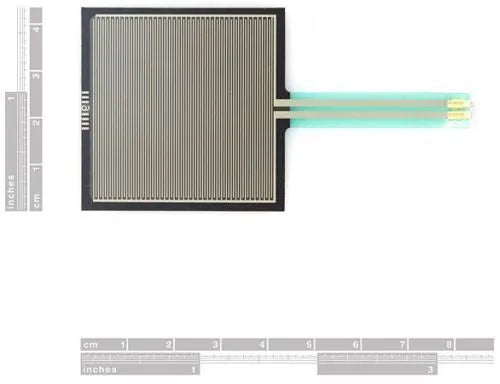

Technical Specifications
| Item Type | Force Sensor |
| Force Range | 100g to 10 kg |
| Length | 89 mm |
How to Use
To use this variable resistor, connect a resistor to form a voltage divider and measure the voltage at the junction. The sensor is easily interfaced with microcontrollers using an Analog to Digital Converter (ADC).
Package Includes
1 x Force Sensor Resistor Square 39.1mm
Related Video
Specification
| Product Specification | Value |
| Item Type | Force Sensor |
| Force Range | 100g to 10 kg |
| Length | 89 mm |
| Weight | approx 5g |
| Shipping Weight | 0.02 kg |
| Shipping Dimensions | 10 × 5 × 3 cm |
