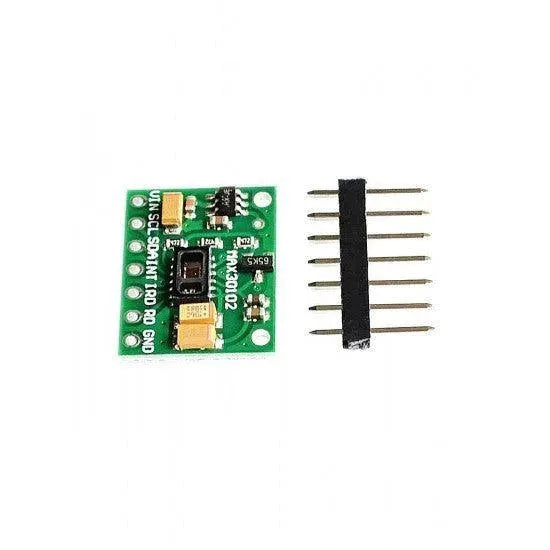

MAX30102 Pulse Oximeter Heart-Rate Sensor Module I2C Interface

The MAX30102 Pulse Oximeter Heart Rate Sensor Module is a state-of-the-art biomedical sensor designed to integrate seamlessly into wearable devices, fitness monitors, and medical systems. Equipped with advanced optical sensing technology, this module max30102 heart rate sensor provides precise measurements of oxygen levels and heart rate using two light wavelengths. Its compact design and ultra-low-power operation make it ideal for battery-operated devices.

Key Features - MAX30102 Pulse Oximeter

• Integrated Optical Sensor: Measures oxygen levels and heart rate.
• Low Power Consumption: Ideal for portable devices.
• Standard I2C Interface: Ensures compatibility with various microcontrollers.
• Enhanced Accuracy: Proprietary ambient light cancellation for precision.
• Customizable Settings: Fully configurable via software registers.
• Download: Max30102 Datasheet

Applications

This sensor module is versatile and suitable for applications like:

• Fitness Assistant Devices
• Medical Monitoring Systems: Oxygen Level Tester
• Wearable Technology
• Smart Watches and Health Bands

Technical Specifications

How to Use

1. Connect the MAX30102 Sensor to your microcontroller via the I2C interface.
2. Use 10k resistors for SCL and SDA pull-up connections.
3. Configure the module settings in your programming environment for desired readings.
4. Calibrate the max 30102 sensor for optimal accuracy.
5. Integrate readings into your application or device, ex: max30102 arduino or raspberry pi based portable max30102 pulse oximeter arduino

Package Includes

• 1 x MAX30102 Pulse-Oximeter Heart Rate Sensor Module

Additional Resources

Explore Our Sensor Collection
Learn More About Pulse Oximetry / SPo2 Sensor

MAX30102 Related Videos Tutorial
