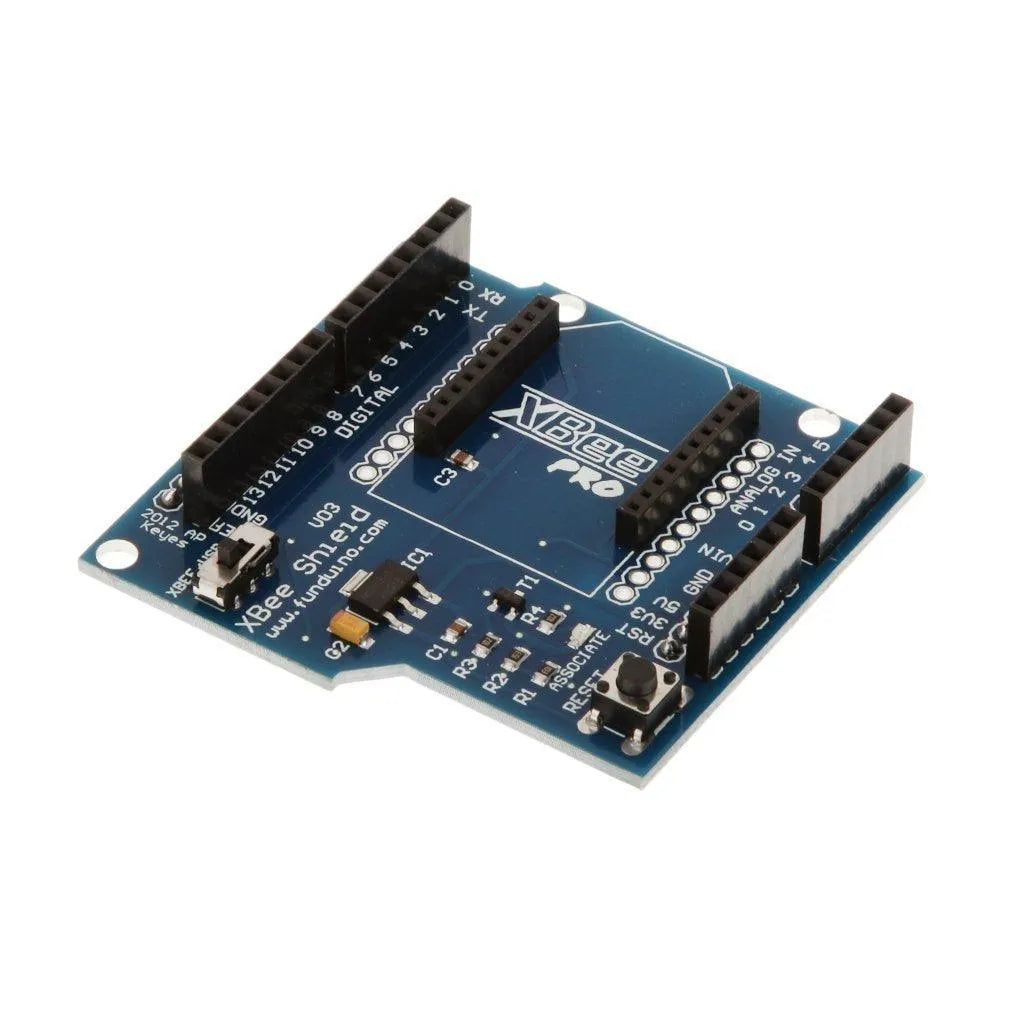

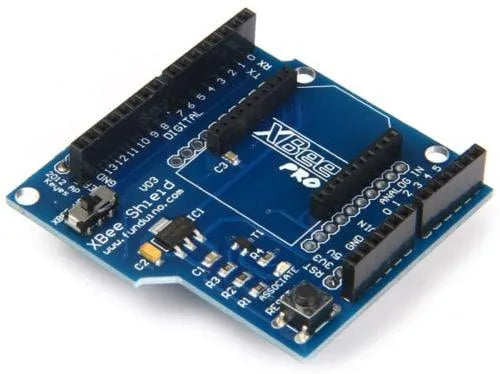

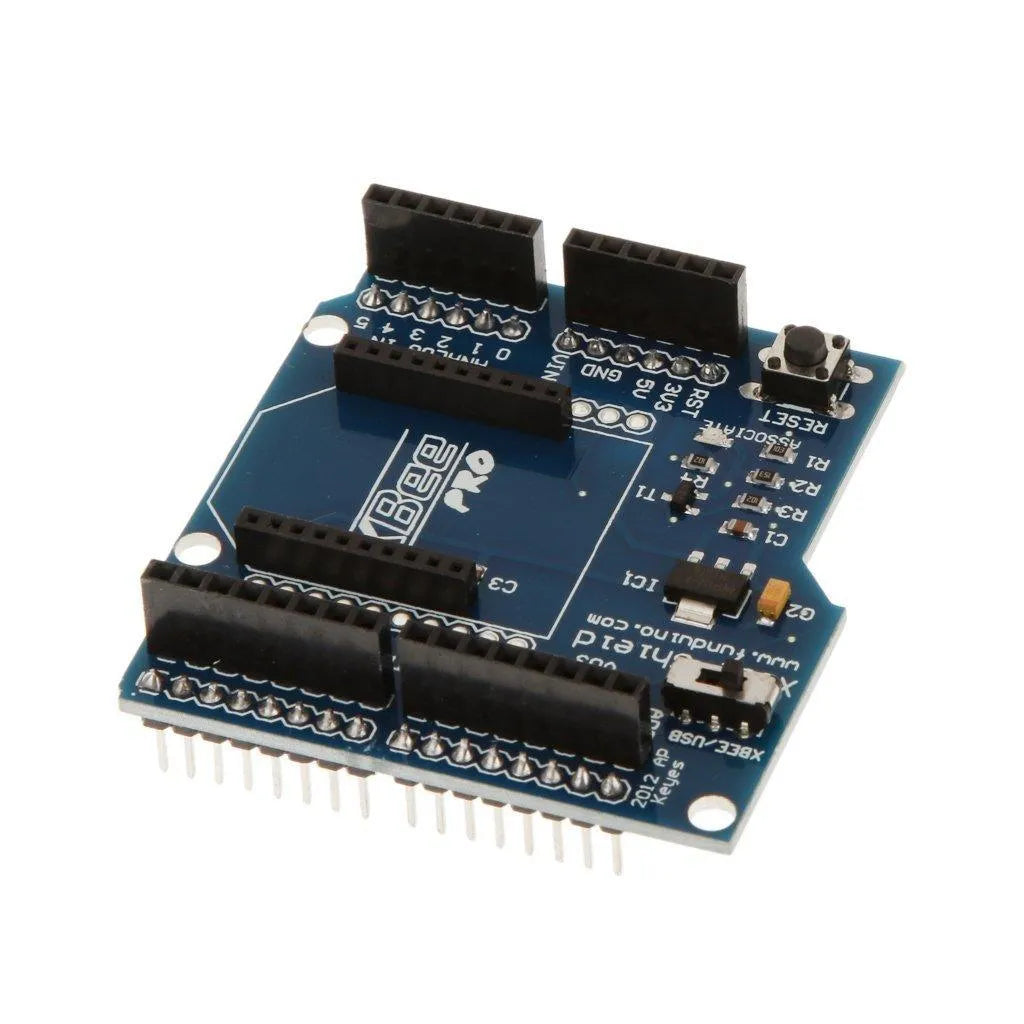

XBee Arduino Shield V3 - Support Wireless Mesh Network ZigBee, XBee Pro Series

The XBee Arduino Shield V03 Module Wireless Communication System is designed for seamless integration with Arduino, allowing developers to build a simple ZigBee network effortlessly. This wireless communication shield ensures reliable data transmission between Arduino boards, using the adaptable ZigBee protocol popularized by the XBee module. Ideal for hobbyists and professionals alike, it is versatile and compatible with XBee's Series 1 and 2 modules, including the Pro versions.

Features: Xbee Arduino Shield

• Stackable design, easy integration with ARDUINO boards.
• Built-in support for Bluetooth communication via the XBee module.
• Dual voltage output options: 3.3v and 5v for flexible usage.
• USB 2.0 protocol ensures reliable and fast data transfer.
• Bitbang mode ready for advanced users.
• Software support through X-CTU for configuration and communication.

Applications

This XBee Arduino Shield module is perfect for creating a wireless network among Arduino devices or for Arduino-to-PC communications through a USB and an XBee adapter. It caters to both PC interfacing and Bluetooth data transmission, showcasing versatile use cases in IoT projects and hobby electronics.

Specifications

Interfacing Circuit

The XBee Arduino shield mates directly with Arduino Pro and USB boards, facilitating straightforward communication setups. Users can leverage the shield for configuring Bluetooth Bee modules and manage serial communications across devices with ease.

How to Use

1. Stack the XBee Shield onto the Arduino board.
2. Connect your XBee module to the shield, ensuring the orientation is correct.
3. Download and install X-CTU software for configuration support.
4. Use a mini USB cable to connect to a PC for initial setup and programming.
5. Test your Arduino project with the configured wireless settings.

Package Includes

• 1 x Bluetooth XBee Shield V03 Module Wireless Control

Additional Links

For more detailed information on Development Boards and Compatible with Arduino Boards, visit our collections. Learn more about XBee.

Videos Tutorial

Coming soon.
