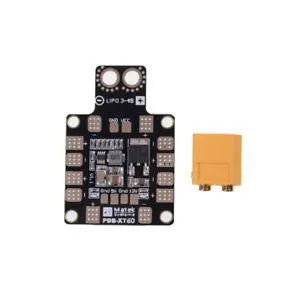

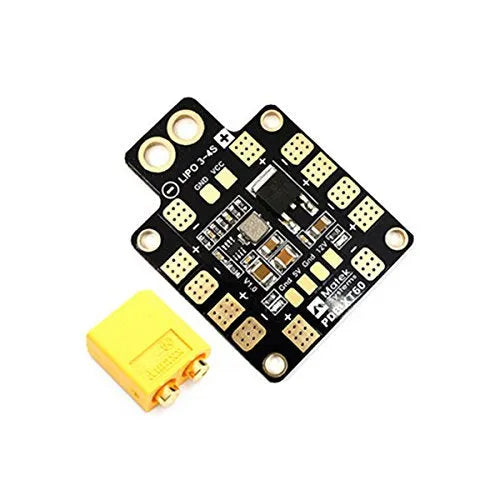

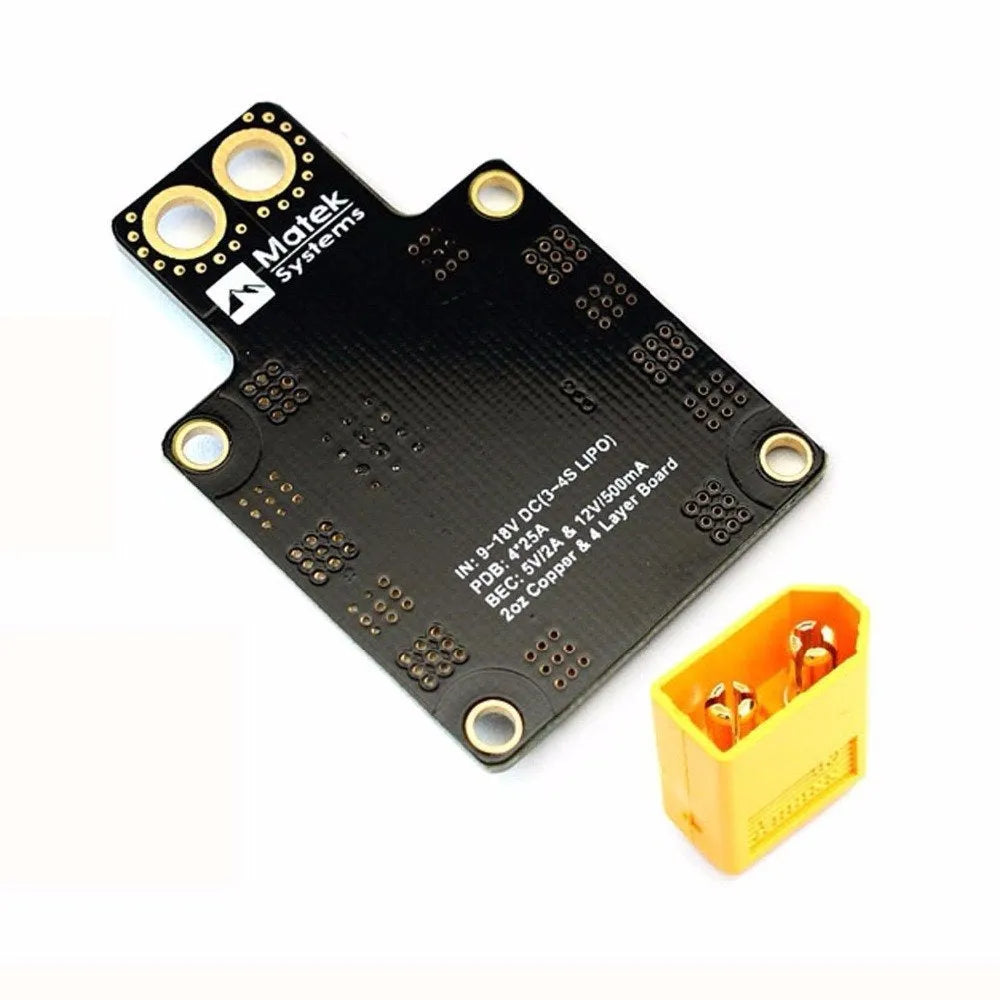

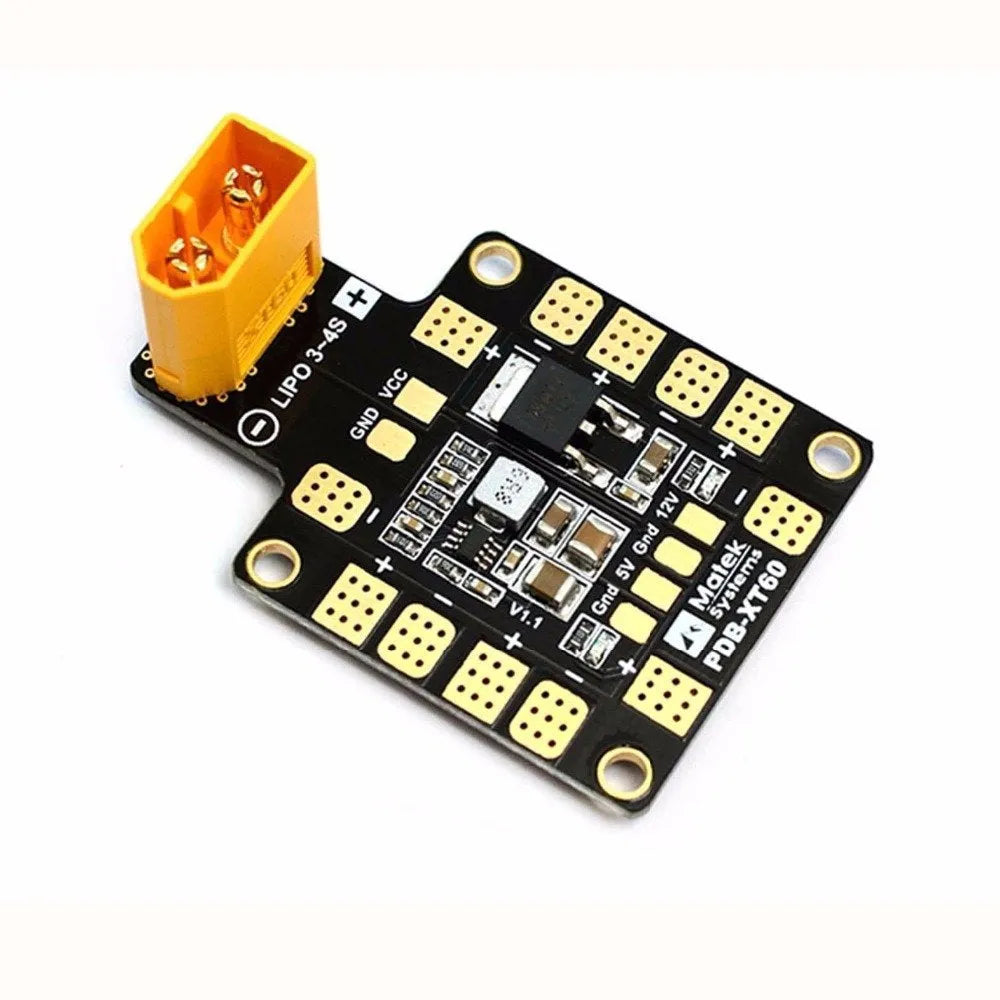

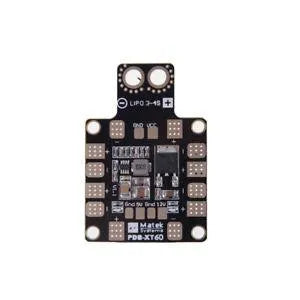

PDB-XT60 with BEC 5V and 12V Drone Power Distribution Board

The PDB-XT60 with BEC 5V and 12V is an advanced drone power distribution system engineered for performance and reliability in drone applications. It's built with a 36x50mm, 4-layer PCB and integrates an XT60 connection for seamless drone power distribution board options. Compatible with 3~4S LiPo packs, this board routes power to 6 ESCs and provides regulated 5V outputs for essential drone components, fulfilling all your drone pdb board needs.

Key Features - Drone Power Distribution

• 4-layer PCB for durability
• Built-in XT60 socket
• 6 pairs ESC solder tabs
• 5V and 12V regulated outputs
• Short-circuit tolerance

Applications

This hexacopter power distribution board suits frameworks needing reliable power distribution board for drone price options. PDB in Drone, It's ideal for racing drones and a cost-efficient solution for setups requiring stable, regulated power.

Technical Specifications

How to Use

Integrate the power distribution board for quadcopter by connecting 3S-4S LiPo packs to the XT60 socket, distributing power to ESCs, ensuring all connections are secure for functional deployments.

Package Includes

• 1 x PDB-XT60 W/BEC 5V and 12V board
• 1 x XT60 male Connector

Additional Resources

• Download Datasheet
• Explore our Drone Accessories

Reference Video
