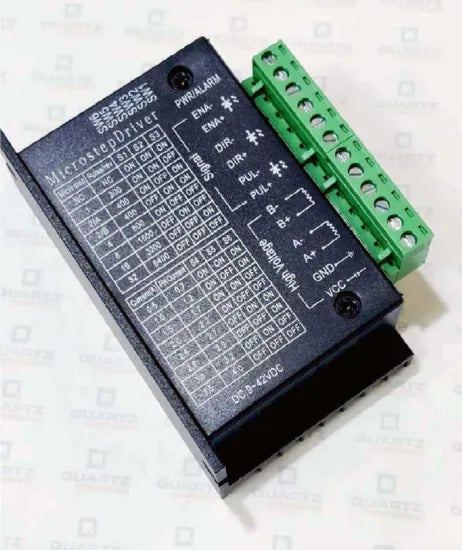

TB6600 Stepper Motor Driver Controller 4A 9~42V TTL 16 Micro-Step CNC 1 Axis is a premium-quality, professional-grade motor driver for stepper motors designed to enhance the functionality of your stepper motor setups. This robust stepper motor controller supports two-phase stepper motors like the Nema 17 stepper driver, providing a peak output current of 4A. Suitable for various projects, from CNC tb6600 machines to 3D printers, it excels in stepper motor and driver applications. Its compatibility with Arduino stepper control and other microcontrollers capable of outputting a 5V digital pulse signal provides ample flexibility for any electronics project. The driver motor step facilitates speed and direction control, allowing you to set microsteps and output current with ease via its 6 DIP switch. It is equipped with over-current, over-voltage, and overheating protection, enhancing its durability in various easy stepper applications.

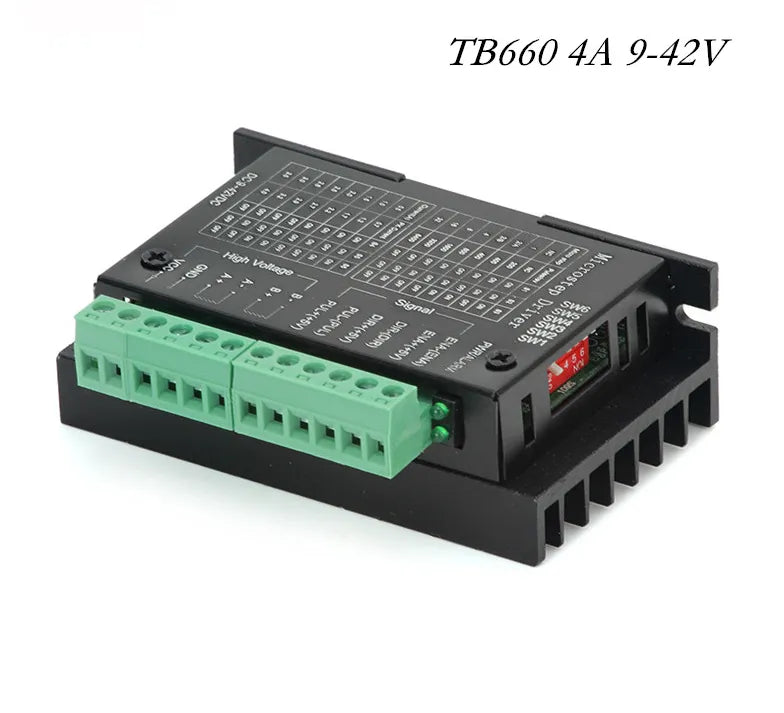

Key Features - TB6600 Stepper Motor Driver
- H bridge bipolar constant current drive for reliable arduino and stepper motor applications
- Wide range of power input, 9~42V DC
- Supports 16 micro-steps for precise control, ideal for stepper motor controller needs
- Peak output current of 4A suitable for tb6600 4a applications
- High-speed optocoupler isolation enhances anti-interference and reliable arduino stepper motor operation
- Suitable for two-phase and four-phase hybrid stepper motors, compatible with the tb6600 nema 17
- Offline retention function for improved stability in arduino stepper driver projects
- Opto-isolated inputs and TTL-compatible for reliable operation in noisy environments
- Equipped with built-in heatsink for efficient thermal management, supporting tb6600 mach3 operations
Applications
This TB6600 Stepper Motor Driver is ideal for use in CNC machines, 3D printers, robotics, and other automation equipment requiring reliable stepper motor control. It excels in any scenario demanding high subdivision steps, such as advanced robotics and automated machinery applications, delivering exceptional performance even in the most stringent environments where a4988 stepper motor driver alternatives are used. Its ability to drive 42, 57, and 86-type stepper motors makes it versatile, also serving as a suitable driver motor step for nema 23 tb6600 setups. The use of arduino cnc tb6600 facilitates seamless integration in CNC applications with the grbl tb6600.

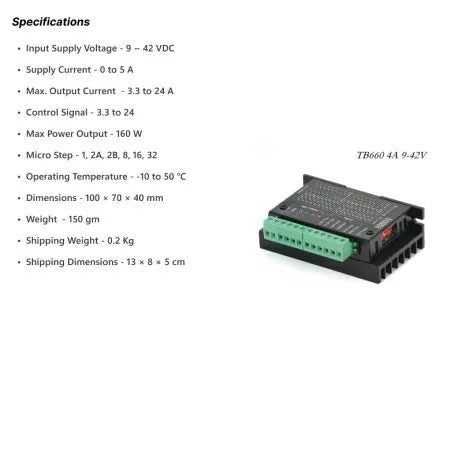

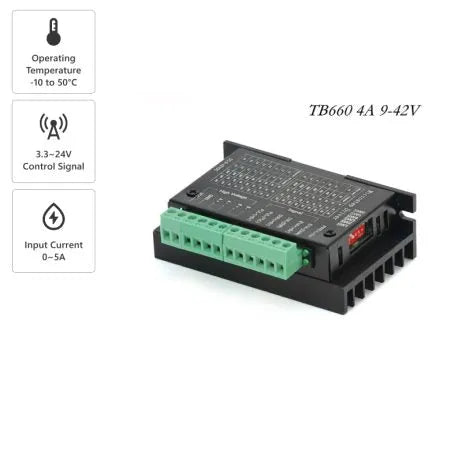

Technical Specifications
| Product Specification |
Value |
| Model Series |
CNC Oriented, TB Series, including tb6600 controller compatibility |
| Voltage Rating (V) |
9 to 42V DC, compatible with tb6600 4a 9 42v stepper motor driver systems |
| Current Rating (A) |
0.5 to 4 (peak), suitable for both nema 17 and nema 23 tb6600 applications |
| Input Voltage (VDC) |
9 ~ 42 |
| Control Signal Voltage (V) |
3.3 to 24, allowing integration with arduino stepper systems |
| Output Power (W) |
160 |
| Micro-Stepping |
16 resolution levels, supporting tb6600 microstep precision |
| Control Signals |
Pulse (PUL), Direction (DIR), Enable (ENA) |
| Protection Mechanisms |
Over-voltage, over-current, and overheating, aligning with drv8825 reliability standards |
How to Use
Integrating the TB6600 Stepper Motor Driver into your project requires the following steps:
- Connect the driver to your stepper motor using the designated motor terminals. Ensure proper sequence and poling to avoid malfunctions common in ln298 moboards.
- Connect the power supply (9~42V) to the driver, ensuring stable voltage input for optimal performance in stepper arduino applications.
- Connect the control signal from your microcontroller (e.g., Arduino) to the driver using the PUL, DIR, and ENA inputs. Utilize the 3.3~24V control signal to establish connectivity with arduino stepper systems.

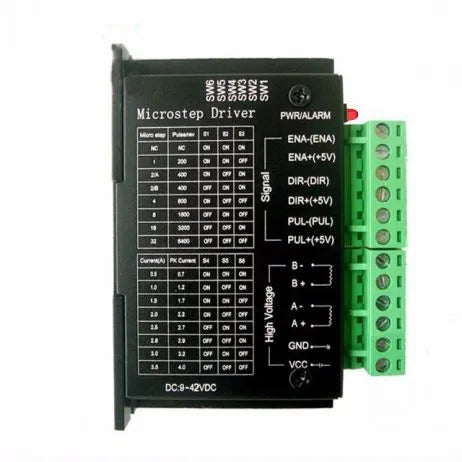

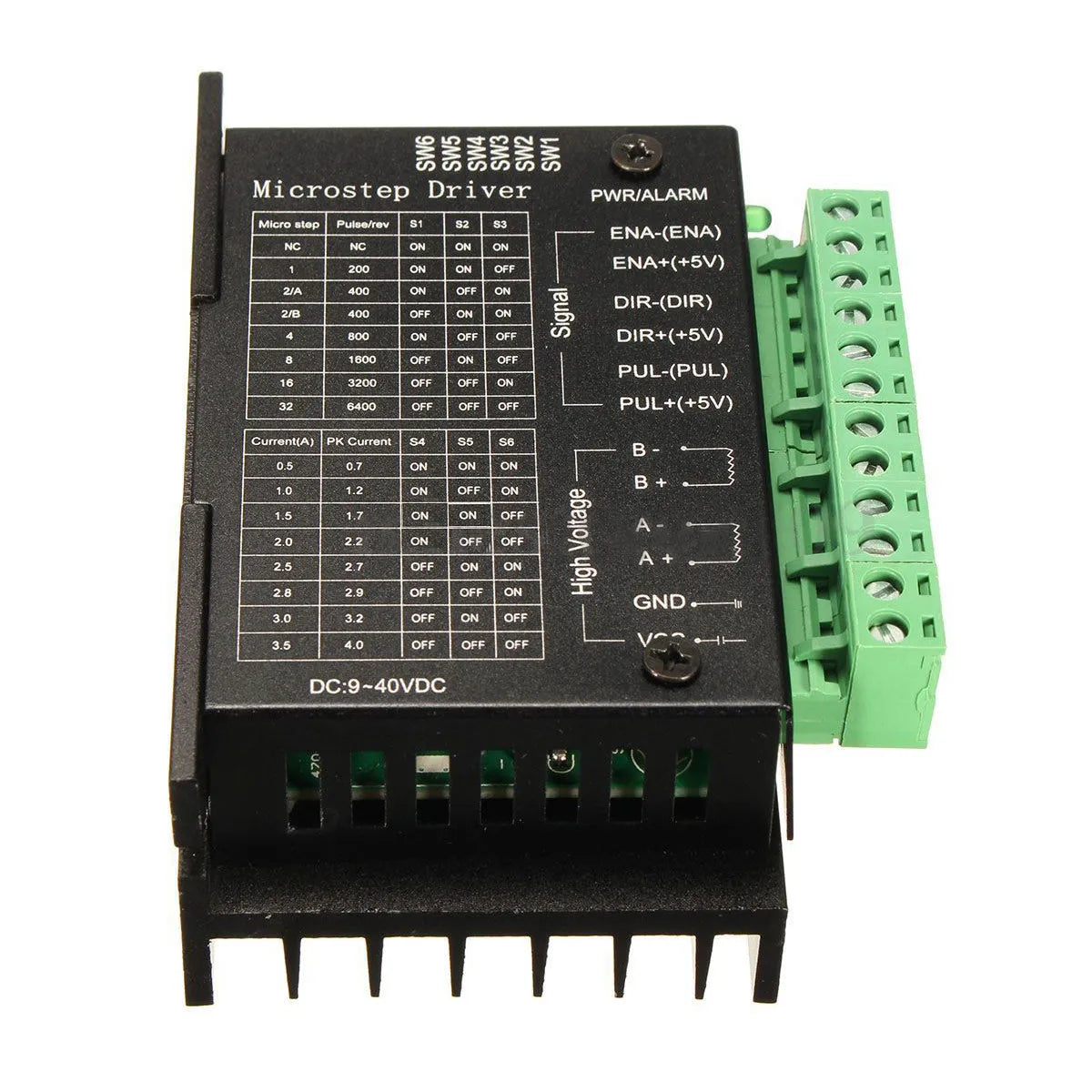

- Configure the 6 DIP switches based on your desired micro-steps and output current, choosing from 1, 2/A, 2/B, 4, 8, 16, or 32 microsteps similar to motor driver l298n settings.
- Mount the driver unit in a place with adequate airflow to prevent overheating, a common concern with traditional l298n motor control solutions.
- Test the system in a controlled environment to verify the correct functionality, ensuring compatibility with tb6660 stepper driver requirements.
Package Includes
- 1 x TB6600 Stepper Motor Driver Controller 4A 9~42V TTL 16 Micro-Step
Additional Resources
Download Datasheet Learn more about TB6600 Stepper Motor Driver
