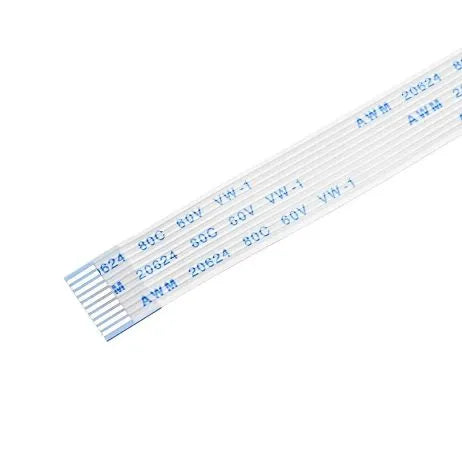

1mm Pitch 10 Pin 150mm FPC A-Type Ribbon Flexible Flat Cable

1mm Pitch 10 pin 150 mm FPC A-Type Ribbon Flexible Flat Cable is an essential component in high-density electronic applications. This ffc connector is ideal for laptops, cell phones, Raspberry Pi peripherals, and emerging technologies, providing reliable connection. The fpc cable comes with reinforced ends for easy insertion and strain relief. It is designed to offer a compact and efficient solution for flexible electronic connections, commonly used where space is limited. With its 1mm pitch 10 pin fpc design, this flexible solution meets various connection needs.

Key Features - 'ffc fpc connector'

• Cable Length: 150mm with a color mix of White and Blue.
• 10 pins for diverse functionality and flexibility in applications.
• 1mm pitch for high-density ffc cable connector installations.
• Reinforced stiffeners for easy insertion and enhanced durability.
• Rated Voltage: 60V, making it suitable for numerous ffc fpc cable uses.
• High flexibility and compact design for easy routing in constrained spaces.
• Lightweight yet durable construction with good electrical and mechanical performance.
• The fpc cable connector ensures stable and secure connections for various electronics.

Applications

This ffc fpc connector is widely used in displays, PCs and computers, flat-screen TVs, and various other electronic devices like printers, scanners, and FAX machines. It is versatile enough for sound boxes, car DVD players, digital cameras, airbag lines, inkjet printers, pictorial machines, consumer electronics, medical devices, and more. Ffc fpc cable is also ideal for wearable technology, robotics, automation systems, and data communications, providing reliable connectivity across many platforms.

Technical Specifications

How to Use

To effectively use the 1mm Pitch 10 pin FPC A-Type Ribbon Flexible Flat Cable, follow these steps: First, identify the correct ffc connector types on your device. Ensure the stiffened end is aligned properly for easy insertion. Insert one end into the connector, ensuring firm but gentle pressure. Connect the opposite end to your chosen peripheral. Validate the connection by powering the device and testing the peripheral function. This 1mm pitch 10 pin fpc can be used with devices like Raspberry Pi cameras or external displays, ensuring easy integration and functionality. Conduct a continuity test if necessary to ensure proper connection for your ffc cable connector projects.

Package Includes

• 2 x 1mm Pitch 10 Pin 150mm FPC A-Type Ribbon Flexible Flat Cable
