Description

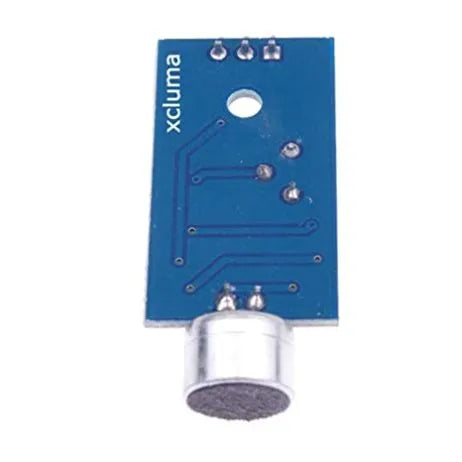

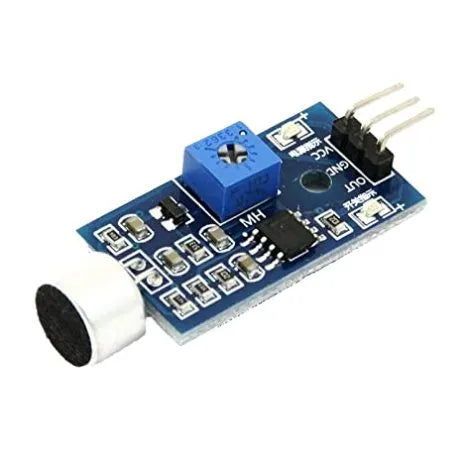

The Arduino Sound Sensor Module is a versatile device expertly designed for detecting sound waves by converting them into electrical signals. Ideal for Arduino projects, this sound detection sensor is highly effective when sound surpasses a predefined threshold, providing both digital and analog output. This sensor sound integrates a condenser microphone and an LM393 op-amp, featuring an adjustable set point via an onboard potentiometer. When the sound intensity crosses the set point, an onboard LED lights up, sending a low output signal. With its user-friendly 3.3V-5V operating voltage, the sensor with sound is perfect for numerous sound detection applications.
Key Features - Arduino Sound Sensor
- Operating Voltage: 3.3V-5V, suitable for various development scenarios.
- Signal Output: Digital and Analog features enhance sensor sound capabilities.
- Adjustable Sensitivity with onboard potentiometer for precision in sound detection sensor.
- Equipped with condenser microphone and Power Indicator LED that signals sound crossing the threshold.
- The LED Indicator lights up when the sound detection module registers high sound intensity.
- Compact and Lightweight design, perfect for projects requiring a microphone sensor.
- Easily integrates with microcontrollers and development boards like Arduino audio sensor setups.
Applications
This Arduino sound sensor module is ideal for interactive projects, such as noise-activated alarms and voice-controlled systems using the sensor audio Arduino interface. It's perfect for sound-activated projects and sound detector roles in audio event detection and home automation systems. The sound sensor module can accurately monitor sound levels, making it suitable for robotics where sound triggers actions. It is effectively used in smart home automation systems, using sound detection precision to activate specific actions. The analog sound sensor feature also facilitates electronics education, demonstrating sound-to-electric signal conversion in schools and workshops.
Technical Specifications
Operating Voltage (VDC) | 3.3 to 5 |
Operating Current (mA) | 4-8 (Vcc=5V) |
Microphone Sensitivity (1Khz) | 52-48dB, suitable for sound microphone sensor applications. |
Microphone Impedance | 2.2KΩ |
Microphone Frequency | 16-20Khz, supporting broad audio ranges like the KY037 configurations. |
Microphone S/N Ratio | 54dB |
Microphone Type | Condenser, known for knock engine sensor accuracy. |
Dimensions | Typically compact, check with supplier |
Compatibility | Works with various development boards including Arduino sound detection sensor setups. |
How to Use
To use the Arduino sound sensor module, connect it to an Arduino board. Utilize the VCC, GND, and OUT pins on the sensor for connections. Use a breadboard and jumper wires to connect the sensor's VCC to the Arduino's 5V or 3.3V pin, and GND to the Arduino's ground. Connect the OUT pin to a digital pin on the Arduino for simple HIGH/LOW detection when sound crosses a threshold or use the Analog Output (AO) for more precise sound level monitoring by connecting it to an analog input pin. The sensor with sound can be adjusted with the onboard potentiometer to set your desired sound level threshold. Surpassing this threshold will activate the LED, and the OUT pin sends a LOW signal. This configurationsupports various Arduino sound sensor projects, including voice detection, by loading suitable programs onto the microcontroller.
Package Includes
- 1 x Sound Detection Sensor Module
Additional Resources
Learn more about Sound DetectionExplore our sensors-modules Collection
Videos Tutorial
Specification
Product Specification | Value |
Operating Voltage (VDC) | 3.3 to 5 |
Operating Current (mA) | 4-8 (Vcc=5V) |
Microphone Sensitivity (1Khz) | 52-48dB |
Microphone Impedance | 2.2KΩ |
Microphone Frequency | 16-20Khz |
Microphone S/N Ratio | 54dB |
Shipping Weight | 0.003 kg |
Shipping Dimensions | 4 × 3 × 2 cm |
