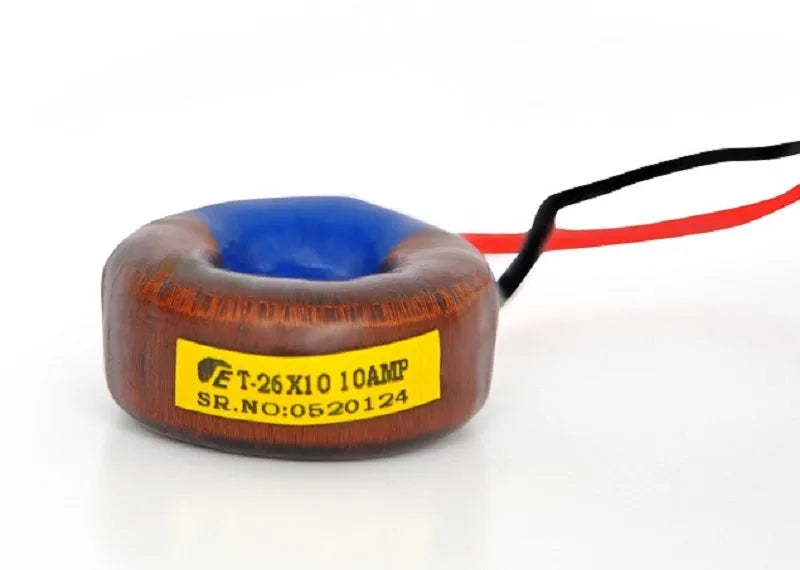

10 AMP Self Mount Current Transformer - Accurate & Compact

The 10 AMP Self Mount Current Transformer is a high-precision, industrial-grade transformer designed to meet European standards IEC 62053-21 and IS: 13779. Engineered for superior performance, this current transformer features a robust PC housing for enhanced insulation and environmental protection. With a 1:1000 winding ratio and accuracy class 1, it is ideal for energy meters, circuit breakers, motor speed controllers, and current sensing applications. Its compact PCB mountable design ensures seamless integration into circuits, making it an excellent choice for both industrial and electronic projects. This transformer is compatible with CT transformers and other current sensing applications, ensuring reliable operation in a wide range of environments.

Key Features - Current Transformer

European Standards Compliance: Built as per IEC 62053-21 and IS: 13779.

High Insulation: PC housing ensures superior insulation and environmental protection.

Compact Design: PCB mountable for seamless integration into circuits.

Durable Build: Robust design suitable for industrial and electronics use.

Precise Performance: Accuracy class 1 for reliable current sensing.

Wide Compatibility: Ideal for energy meters, circuit breakers, and motor speed controllers.

Applications

Energy meters and monitoring systems.

Electronic circuit breakers for overload protection.

Current sensors in industrial automation.

Motor speed controllers and industrial equipment.

Technical Specifications

How to Use

1. Mount the current transformer onto the PCB.

2. Connect primary and secondary terminals as per circuit design.

3. Use recommended burden resistance for optimal output voltage.

4. For precise results, consider feedback and compensation circuit adjustments.

Package Includes

1 x 10 AMP. Self Mount Current Transformer.
