F450 Quadcopter Drone Frame Kit V2 – Fully Compatible with DJI F450 Frame Kit
Buy the F450 Quadcopter Drone Frame Kit V2 in India. This high-quality drone frame is fully compatible with the DJI F450 kit, making it an ideal choice for both professional and hobby drone builders. Built with 45% glass fiber & polyamide-nylon, this quadcopter frame ensures superior durability, impact resistance, and stability. Designed for seamless integration with DJI F450 components, it features an integrated PCB for efficient power distribution, eliminating the need for a separate Power Distribution Board (PDB).
Key Features – F450 Drone Frame Kit
- Full DJI Compatibility: Works seamlessly with the DJI F450 kit, DJI F450 frame, and related components.
- High-Strength Material: Made of glass fiber & polyamide-nylon, ensuring lightweight durability.
- Integrated PCB: Direct ESC soldering for a clean and organized setup.
- Reinforced Arm Design: Support ridges for added stability and better aerodynamics.
- Optimized for Racing & UAV Applications: FPV racing drone frame with excellent maneuverability.
- Accessory Mounting: Large mounting tabs for cameras, FPV systems, and drone accessories.
Applications
The F450 Quadcopter Drone Frame Kit V2 is perfect for various drone applications:
- DIY Drone Projects: Ideal for enthusiasts building custom drones.
- FPV Racing: Lightweight FPV drone frame with superior speed and maneuverability.
- Aerial Photography: Stable quadcopter frame for smooth video and image capture.
- UAV Research & Development: Suitable for experimental drone builds and engineering projects.
- Commercial Drone Applications: Perfect for mapping, surveillance, and inspection drones.
Technical Specifications
Wheelbase | 450mm – Ensures stability and compatibility with multiple motor types. |
Material | Glass Fiber & Polyamide-Nylon – Lightweight, durable, and impact-resistant. |
Motor Mounting Hole Diameter | 3mm – Compatible with standard brushless motors. |
Arm Size | 220mm x 40mm – Optimized for balanced flight performance. |
Weight | 290g – Lightweight design improves drone efficiency. |
Shipping Weight | 0.415 kg – Secure packaging for safe delivery. |
Shipping Dimensions | 22 × 9 × 4 cm – Compact for easy transport. |
How to Use
Setting up the F450 Drone Frame Kit V2 is straightforward with the integrated PCB. Follow these steps for an efficient build:
- Secure the top and bottom frame using the provided screws.
- Attach the four arms firmly for stability.
- Solder the ESCs directly onto the integrated PCB for neat wiring.
- Mount brushless motors onto the pre-threaded brass sleeves.
- Install the flight controller and power distribution system.
- Attach propellers, battery, and FPV accessories as needed.
- Perform a pre-flight check before launching the quadcopter drone.
Package Includes

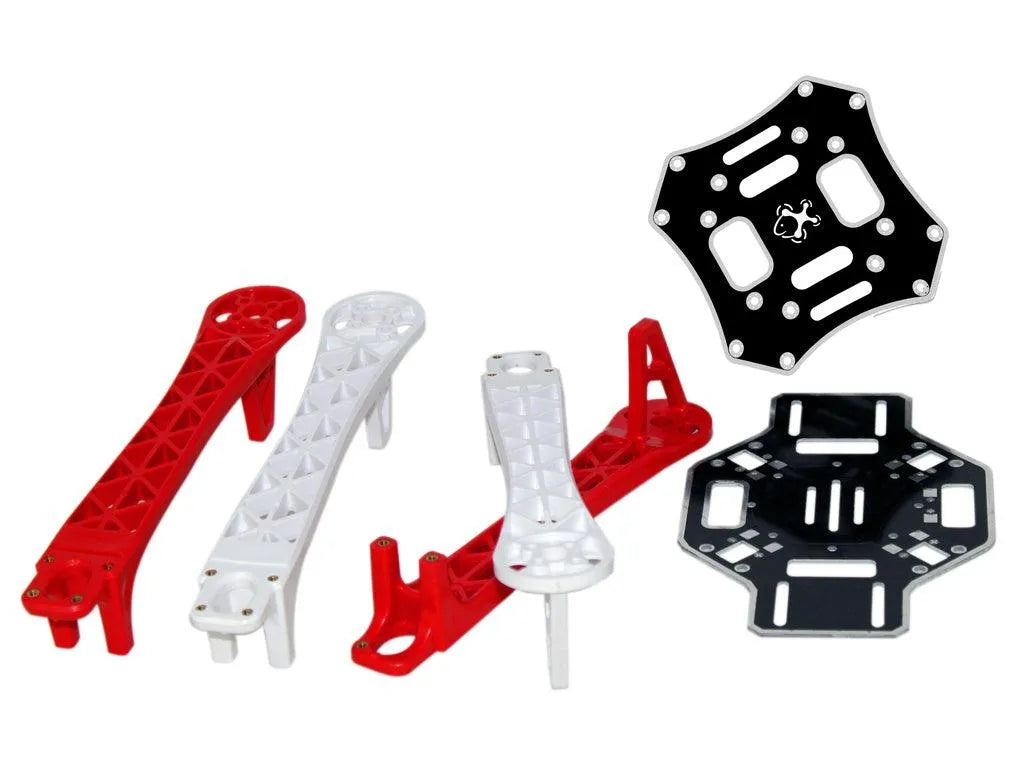

- 1 x F450 Quadcopter Frame (Top and Bottom) with Upgraded PCB

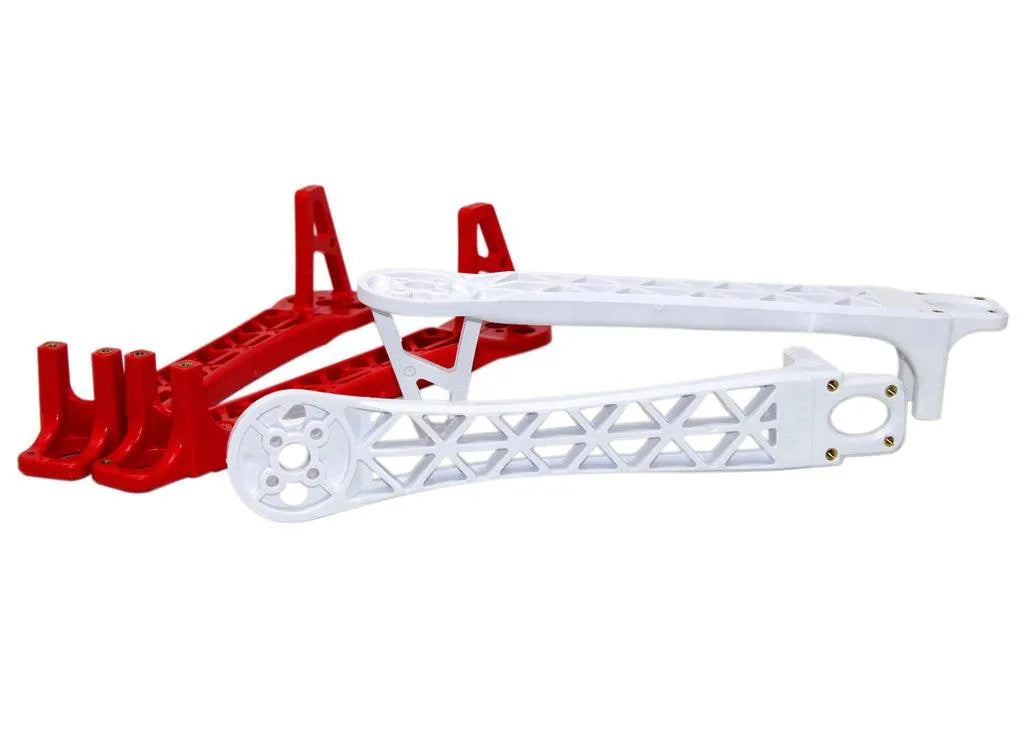

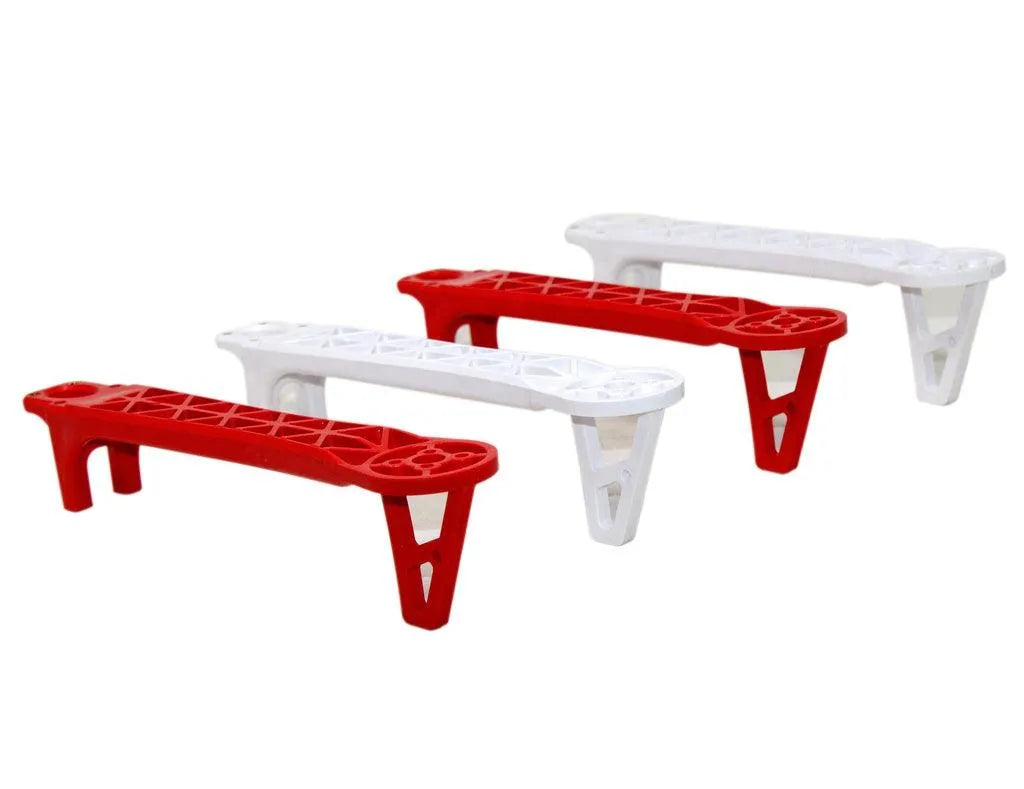

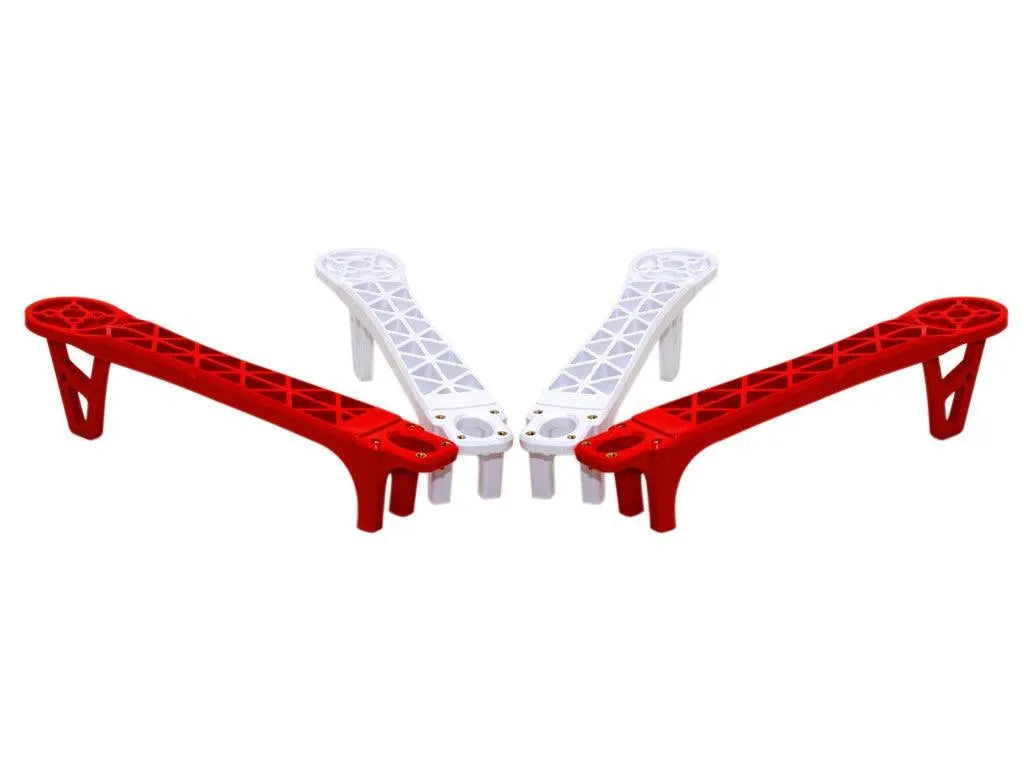

- 4 x Arms (2 Red + 2 White) – Enhances stability & visibility
- 1 x Accessories Set (24 x M3 x 5mm Screws) – Secure assembly
Recommended Components (Not Included)
- Propellers: 1045 or 8045 (CW & CCW) – Provides optimal thrust.
- Battery: 3S LiPo (1800–3600mAh) – Ensures stable power for extended flights.
- ESC: 15A–40A – Delivers smooth and efficient power management.
- Motor: 800–1100KV brushless motors – Balanced power and efficiency.
Additional Resources
Learn more about Quadcopter FramesExplore our Drone Parts Collection
Check out Drone Accessories
Video Tutorial
Why Choose the F450 Quadcopter Drone Frame Kit V2?
The F450 Quadcopter Drone Frame Kit V2 is one of the best drone frames for building high-performance UAVs. Fully compatible with DJI F450, it features an integrated PCB, durable materials, and an optimized design. Whether you're a professional drone pilot, FPV racer, or aerial photography enthusiast, this quadcopter frame delivers outstanding performance and reliability.
Specification
Compatibility: | Fully compatible with DJI F450 Frame Kit |
Durability: | Made from 45% glass fiber and polyamide-nylon for high strength |
Integrated PCB: | Upgraded for clean, efficient power distribution |
Wheelbase: | 450mm – Stable and compatible with various motor types |
Lightweight: | Total weight of 290g – Easy to maneuver and transport |
Arm Size: | 220mm x 40mm – Designed for stability and optimal performance |
