GY-271 HMC5883L 3-axis Electronic Compass Module

The GY-271 HMC5883L 3-axis Electronic Compass Module is an advanced magnetic field sensor, offering precise heading information for your projects. This versatile sensor is ideal for use in UAVs and robot navigation systems, providing reliable and accurate magnetic sensing. Utilizing the GY 271 hmc5883l magnetometer technology, it converts magnetic fields into a differential voltage output, enabling a range of innovative applications with digital interface accessibility. Leverage the compact design to easily integrate into small projects, offering seamless performance and precision.

Key Features - HMC5883L

• 3-axis magnetic sensing
• Precise heading data
• Compact and lightweight
• I2C communication protocol
• ±1.3-8 Gauss measuring range

Applications

The arduino hmc5883l is perfect for UAV navigation systems, enabling precise directional guidance. Additionally, the compass hmc5883l module arduino application supports straightforward integration in robotic projects, delivering accurate compass readings essential for navigation tasks.

Technical Specifications

How to Use

Integrating the HMC5883L into your projects is straightforward. Connect the sensor module using I2C protocol to your microcontroller. Refer to the hmc5883l datasheet similar to qmc5883l for detailed connection schematics and configuration instructions.

Package Includes

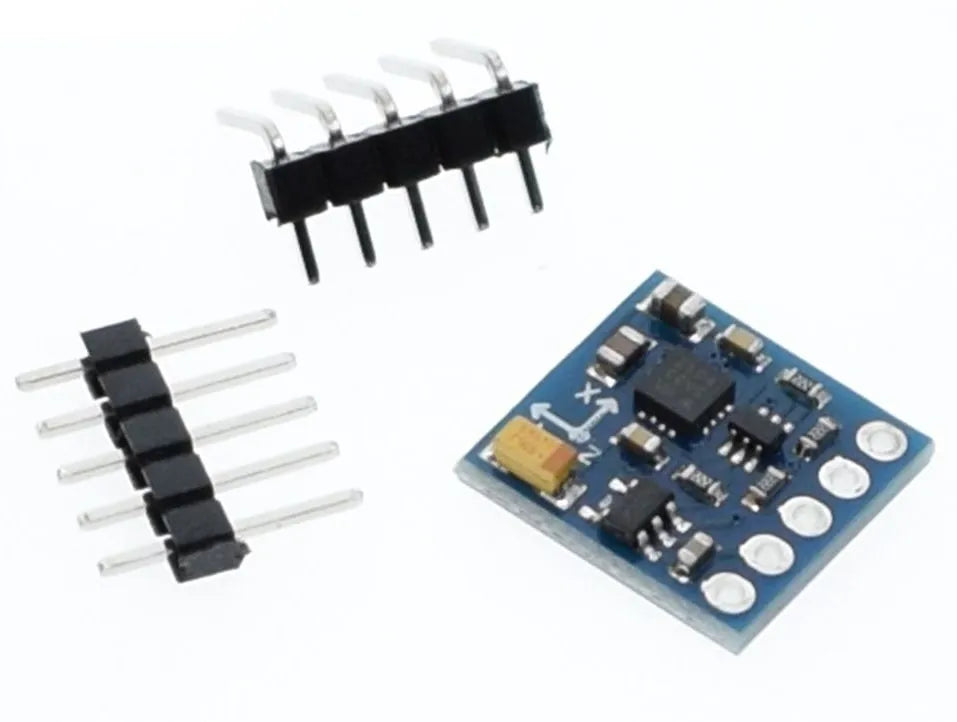

• 1 x HW-217 HMC5883L 3-axis Electronic Compass Module
• 2 x 5*1 Male Burg Connectors (without soldered)

Additional Resources
