Description

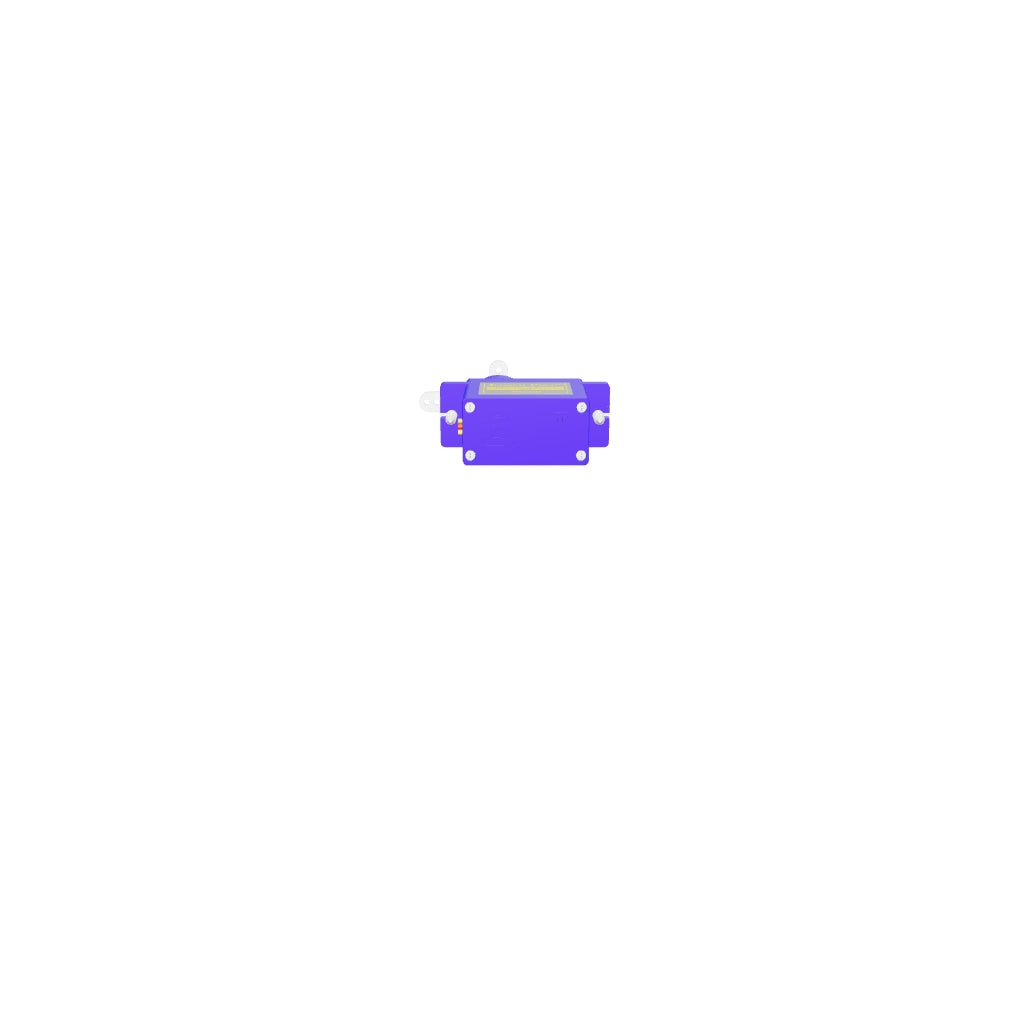

TowerPro SG90 Mini Servo – 180 degree Rotation – Standard Quality is a high-performing servo motor ideal for applications requiring precise control and reliability such as RC aircraft, robotics, and automotive projects. The SG90 Servo Motor Specifications compete well with other models due to its 180-degree rotation range and affordable pricing.
Key Features - SG90 Servo Motor
- High resolution
- Accurate positioning
- Fast control response
- Constant torque throughout servo travel
- Excellent holding power
Applications
This SG90 Micro Servo Motor is perfect for RC aircraft and robotics applications, providing precision and flexibility. Its versatility also allows use in Micro Servo 9g setups, making it ideal for hobbyists.
Technical Specifications
| Item Type | TowerPro Servo Motor |
| Model Series | SG Series |
| Rotation (Degree) | 180 |
| Torque Rating (kg-cm) | 1.2 to 1.6 |
| Model No. | SG90 |
| Operating Voltage (VDC) | 3.0 ~ 7.2 |
| Operating Speed @4.8V | 0.10sec/60° |
| Stall Torque @ 4.8V (Kg-Cm) | 1.2 |
| Stall Torque @6.6V (Kg-Cm) | 1.6 |
| Operating Temperature (°C) | -30 to 60 |
| Gear Type | Glass Fiber |
| Servo Plug | JR |
| Cable Length (cm) | 25 |
| Dimensions (mm) | 32x12x31 |
| Weight (g) | 9 |
| Shipping Weight | 0.014 kg |
| Shipping Dimensions | 6x6x4 cm |
How to Use
The Servo Motor 9g operates best between 3.0V and 7.2V. Connect the RED wire to positive, BROWN to negative, and ORANGE to the signal input for optimal performance.
Package Includes
- 1 x TowerPro SG90 9g Mini Servo Motor with Cable
- 1 x Set of Horns
- 1 x Set of Screws
Additional Resources
Learn more about SG90 Servo Motor
Explore our TowerPro and Other Servo Motors Collection
Videos Tutorial
Specification
| Product Specification | Value |
|---|---|
| Item Type | TowerPro Servo Motor |
| Model Series | SG Series |
| Rotation (Degree) | 180 |
| Torque Rating (kg-cm) | 1.2 to 1.6 |
| Model No. | SG90 |
| Operating Voltage (VDC) | 3.0 ~ 7.2 |
| Operating Speed @4.8V | 0.10sec/60° |
| Stall Torque @ 4.8V (Kg-Cm) | 1.2 |
| Stall Torque @6.6V (Kg-Cm) | 1.6 |
| Operating Temperature (°C) | -30 to 60 |
| Gear Type | Glass Fiber |
| Servo Plug Type | JR |
| Cable Length (cm) | 25 |
| Length (mm) | 32 |
| Width (mm) | 12 |
| Height (mm) | 31 |
| Weight (g) | 9 |
| Shipping Weight | 0.014 kg |
| Shipping Dimensions | 6 × 6 × 4 cm |
