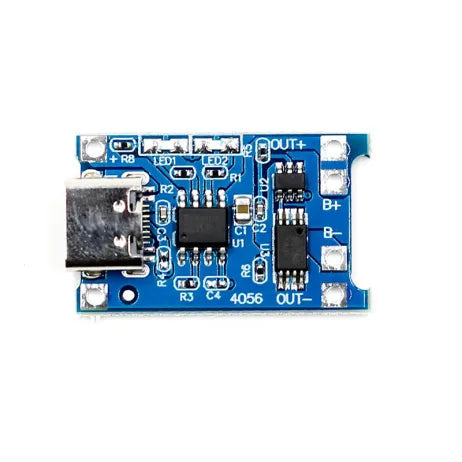

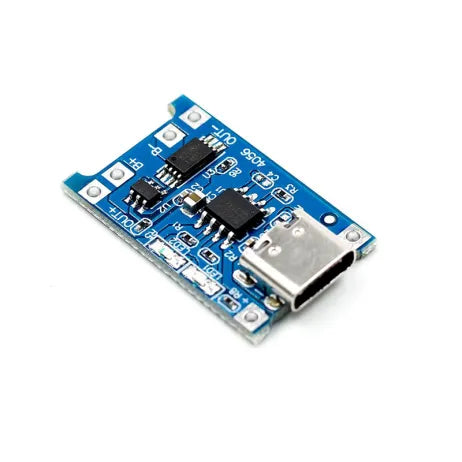

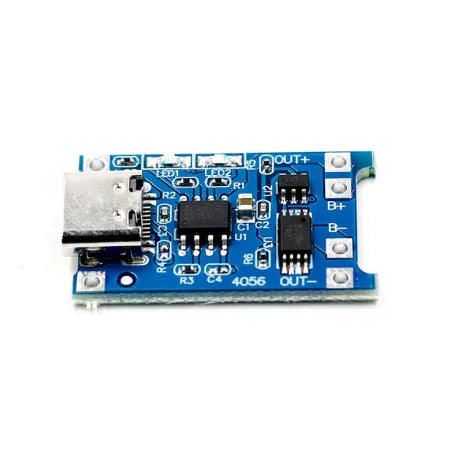

TP4056 1A Li-ion Lithium Battery Charging Module - Type C

TP4056 1A Li-ion lithium Battery Charging Module With Current Protection – Type C is an advanced and compact power bank module designed for efficient charging of single-cell lithium-ion or lithium-polymer batteries. This tp4056 charging module stands out for its cutting-edge features, making it a reliable lithium battery charging module for enthusiasts and professionals alike. The module is equipped with a TP4056 IC and a DW01 protection IC, functioning as a fast charging power bank module. With its Type-C USB port, this li ion battery charger module is highly user-friendly. It controls a charge current of 1A and includes a protection circuit that safeguards against overcurrent, ensuring safe operation for 3.7V lithium-ion or lithium-polymers.

Key Features - TP4056

• Type-C USB port for convenient connectivity in tp4056 1a applications.
• Current protection ensures safe charging with integrated overcurrent, overvoltage, and short circuit protection, typical of tp4056 ic technology.
• Reverse polarity protection safeguards against incorrect connections, critical for lithium cell charger module performance.
• LED indicators: Red for charging, Green for fully charged, common in power bank module designs.
• Automatic recharge and under-voltage lockout capability is essential in tp4056 li ion designs.
• Compact size making it suitable for use in restricted spaces, perfect for fast charge module adoption.

Applications

This battery charging module shines in DIY electronics, allowing hobbyists to easily incorporate it into custom power banks or battery management systems. With its built-in protective capabilities, it's ideal for developers working on electronic prototyping with 18650 battery charging module needs. It excels in handling 18650 and other 3.7V single-cell lithium-ion or lithium-polymer batteries, ensuring long-lasting battery health in your projects. The tp4056 module is also great for fast charging power bank module applications and panel solar charger integrations, offering versatility and reliability.

Technical Specifications

How to Use

To use the TP4056 module, connect a Type C cable or 5V DC to the IN+ and IN- pads on the module's left side. Attach the cell you wish to charge to the B+/B- pads on the right side of the module, ensuring correct polarity especially when utilizing as a TP4056 li ion battery charger. The TP4056 module will automatically manage the charging process, providing a constant current to the battery once power is connected. For devices running on this fast charge module, connect them to the OUT+/OUT- pads. Ensure you disconnect the load during charging to maximize the efficiency of this li ion charger tp4056 and monitor the LED indicators for charging status.

Package Includes

• 1 x TP4056 1A Li-ion Lithium Battery Charging Module With Current Protection – Type C
