Description

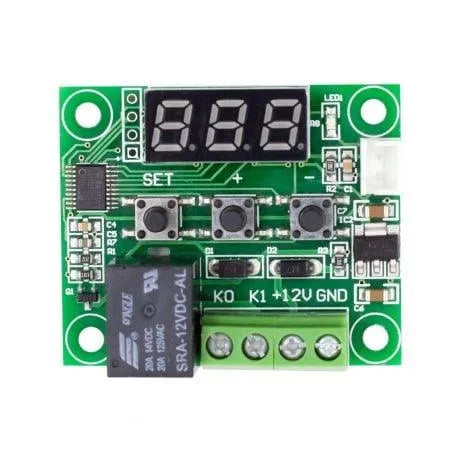

This W1209 Temperature Controller is a crucial tool for accurately regulating the temperature in various electronic applications. The XH W1209 module comes with a vivid display and a superlative NTC temperature sensor, ensuring precise temperature control with an accuracy of up to 0.1°C. The device is designed to intelligently manage power to electrical devices based on real-time temperature readings, making it an indispensable component for both DIY electronics enthusiasts and professional engineers.
Features: W1209 Temperature Controller
- Extensive temperature control range of -50 to +110°C ensuring versatility.
- Highly accurate NTC temperature sensor with precise 0.1°C resolution at core temperatures.
- Relay output with a capacity of 12V 10A, suitable for controlling both heating and cooling devices.
- Compact dimensions (48x40x14 mm), making it ideal for integration into various electronic setups.
- Simple yet effective 3 switch keypad interface to set trigger temperatures and parameters.
Applications
The XH W1209 digital temperature controller is perfect for scenarios where temperature regulation is critical. Applications include automated heating & cooling systems, DIY electronics projects, automotive modifications, fire alarm systems, and the auto cut-off for electric water heaters. Its adaptability for AC and DC applications and ease of use make it a top choice for Electronic Modules and Displays and Measuring Instruments.
Specifications
| Accuracy: | ±0.1°C |
| Temperature Range: | -50 to +110°C |
| Supply Voltage: | 12V |
| Output Type: | 1 Channel Relay |
| Relay Output Capacity: | 10A |
| Dimensions (LxWxH): | 48x40x14 mm |
| Cable Length: | 50 cm |
| Weight: | 20 g |
Interfacing Circuit
The XH W1209 Temperature Controller easily interfaces with a wide range of electrical devices via its relay output. Wire the device according to the schematic available in the datasheet to ensure safe and efficient operation. The display provides real-time monitoring of the temperature and relay status, helping in precise control.
How to Use
To get started, connect the module to a 12V power supply. Use the 'SET', '+', and '-' buttons to configure the trigger temperature, parameters like P0 to P6, and ensure settings like hysteresis, upper/lower limits, and correction offset are adjusted according to your needs. The onboard display and LED indicators provide real-time feedback.
Package Includes

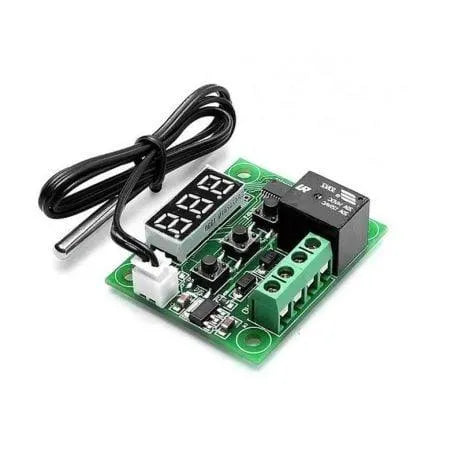

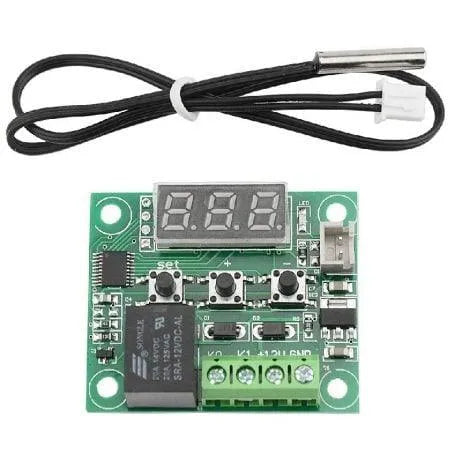

- 1 x XH W1209 Temperature Controller Switch with NTC Sensor and Display.
Additional Links
Videos Tutorial
Specification
| Temperature Control Range: | -50 to +110°C |
| Resolution: | 0.1°C @ -9.9°C to 99.9°C, 1°C for others |
| Accuracy: | ±0.1°C |
| Refresh Rate: | 0.5 seconds |
| Input Supply Voltage: | 12V DC |
| Measuring Inputs: | NTC10K |
| Cable Length: | 50 cm |
| Output Type: | 1 Channel Relay |
| Relay Output Capacity: | 10A |
| Dimensions: | 48 x 40 x 14 mm |
| Weight: | 20 g |
