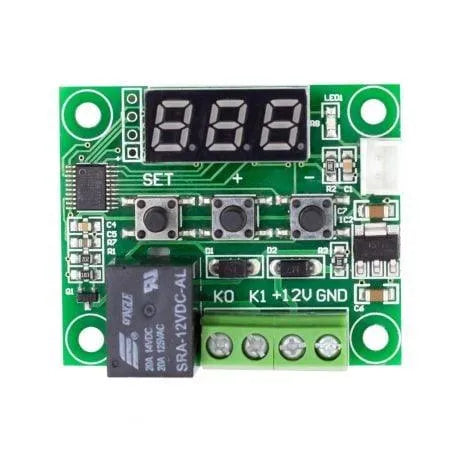

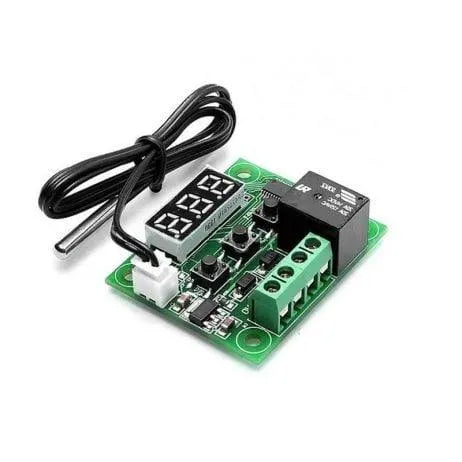

This W1209 Temperature Controller is a crucial tool for accurately regulating the temperature in various electronic applications. The XH W1209 module comes with a vivid display and a superlative NTC temperature sensor, ensuring precise temperature control with an accuracy of up to 0.1°C. The device is designed to intelligently manage power to electrical devices based on real-time temperature readings, making it an indispensable component for both DIY electronics enthusiasts and professional engineers.
Features: W1209 Temperature Controller
Extensive temperature control range of -50 to +110°C ensuring versatility.
Highly accurate NTC temperature sensor with precise 0.1°C resolution at core temperatures.
Relay output with a capacity of 12V 10A, suitable for controlling both heating and cooling devices.
Compact dimensions (48x40x14 mm), making it ideal for integration into various electronic setups.
Simple yet effective 3 switch keypad interface to set trigger temperatures and parameters.
Applications
The XH W1209 digital temperature controller is perfect for scenarios where temperature regulation is critical. Applications include automated heating & cooling systems, DIY electronics projects, automotive modifications, fire alarm systems, and the auto cut-off for electric water heaters. Its adaptability for AC and DC applications and ease of use make it a top choice for Electronic Modules and Displays and Measuring Instruments.
Specifications
Accuracy:
±0.1°C
Temperature Range:
-50 to +110°C
Supply Voltage:
12V
Output Type:
1 Channel Relay
Relay Output Capacity:
10A
Dimensions (LxWxH):
48x40x14 mm
Cable Length:
50 cm
Weight:
20 g
Interfacing Circuit
The XH W1209 Temperature Controller easily interfaces with a wide range of electrical devices via its relay output. Wire the device according to the schematic available in the datasheet to ensure safe and efficient operation. The display provides real-time monitoring of the temperature and relay status, helping in precise control.
How to Use
To get started, connect the module to a 12V power supply. Use the 'SET', '+', and '-' buttons to configure the trigger temperature, parameters like P0 to P6, and ensure settings like hysteresis, upper/lower limits, and correction offset are adjusted according to your needs. The onboard display and LED indicators provide real-time feedback.
Package Includes

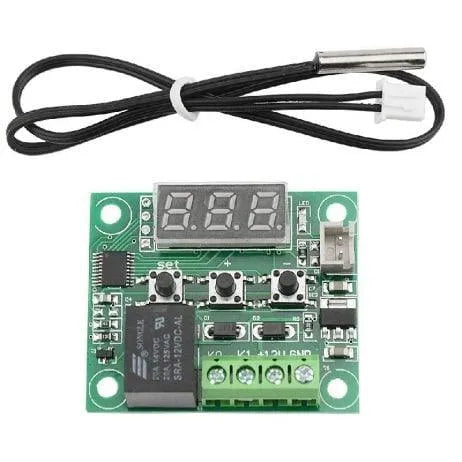

1 x XH W1209 Temperature Controller Switch with NTC Sensor and Display.
