4S 10A Lithium Battery BMS Board with Charging Protection

This 4S 14.8V 10A Lithium Battery Protection Board is essential for safeguarding your lithium battery packs. It offers comprehensive charging protection, making it perfect for any project utilizing a 3.7V lithium-ion battery in series. The NMC 4S-10A (As per image) model ensures your battery operates efficiently and safely by providing critical protections such as overcharge, over-discharge, over-current, and short-circuit protection. The board manages the balance and charge/discharge cycles effectively, ensuring reliable operation under various conditions. With a compact design, this board suits a variety of high-integration and cost-effective applications, ensuring reliability at every stage with its advanced bms circuit board technology.

Key Features - Charging Protection

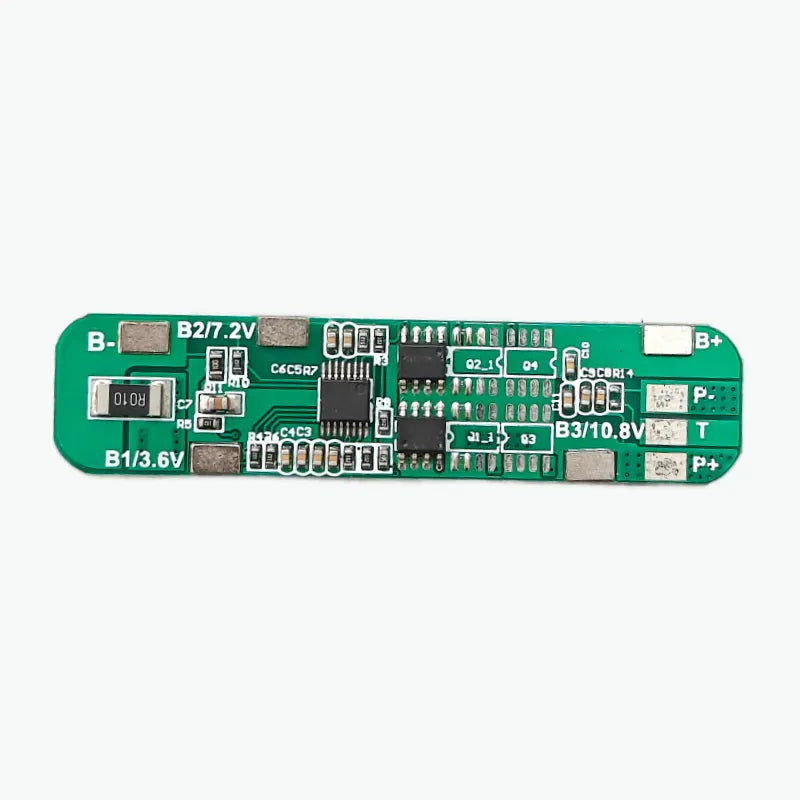

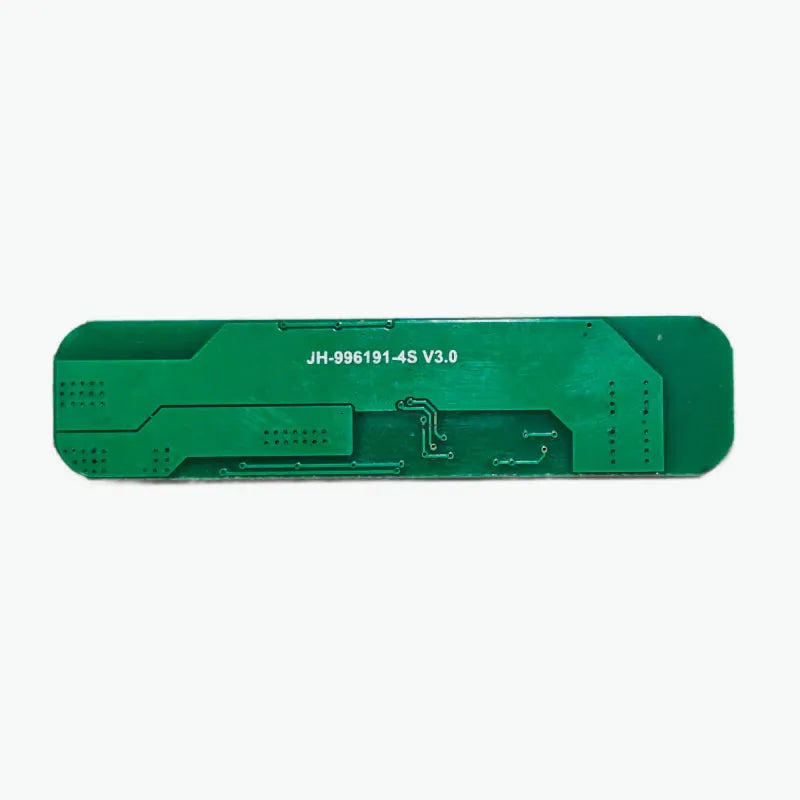

• Model: NMC 4S-10A (As per image)
• Fast and safe charging with charging protection
• Complete protection against overcharge, over-discharge, and short circuits provided by the bms board 12v capabilities
• Balances all cells in the battery pack efficiently with 3s bms board technology
• Integrated circuit precision ensures consistent performance and safety
• Compact design with high efficiency and reliability like a pcb bms configuration
• Supports a continuous discharge current of up to 10A, comparable to the 3s 10a bms specifications
• Provides reliable power management similar to the 3s bms charging voltage

Applications

This protection board is adaptable, making it ideal for different power requirements in projects such as small power inverters, massager battery packs, solar street lamp battery back-ups, electric vehicles, power tools, storage systems, backup power supplies, and various portable devices. Its incredible versatility caters to mass electronic products, extending the effective life of devices it powers, akin to the utility provided by a 3s 20a bms. With the inclusion of 12v battery charger pcb board functionality, this protection board maximizes energy efficiency in portable devices.

How to Use

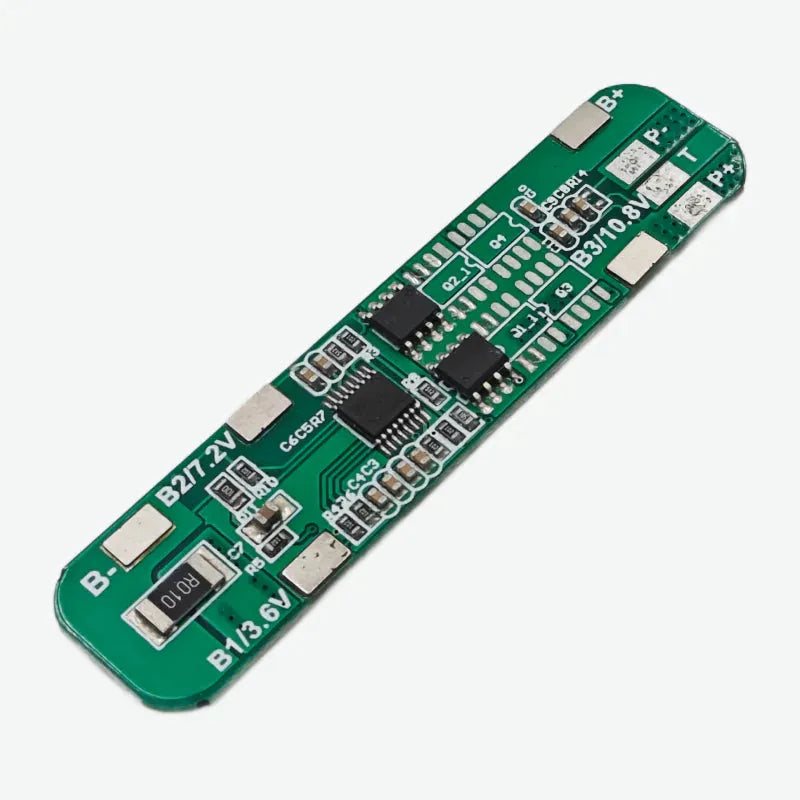

To use the charging protection board properly, connect four lithium cells in series, aligning them with the B+, B3, B2, B1, B- pins as illustrated in the circuit diagram. Ensure P+ and P- are correctly aligned for power input/output. This alignment maximizes functionality similar to that found in a 3s bms board. Integrate the protection board within the battery housing to shield it from physical and environmental damage, much like a 7.4 v bms. Use a charger that matches the voltage and current specifications required for the battery pack to ensure efficiency.

Package Includes

• 1 x 4S 10A 18650 Lithium Battery Protection Board (NMC 4S-10A (As per image))

Additional Resources

With each lithium battery protection solution, from 1s bms 18650 to bms 3s 12v, our resources cover extensive product ranges to fit your precise needs.

Videos Tutorial

Watch our video tutorial to understand how bms board 12v integration enhances circuit efficiency compared to traditional systems.
